Automatic self-priming sludge pump

Self-Priem Slug Pump (SP)

In times of relief and crisis, self-priming sludge pumps or SP (Self-Prime Sludge Pump) are used to drain and transfer fluid, water or wastewater from one point to another. An important feature of this type of pump is the ability to transfer water along with other objects, debris and high-viscosity sludge. This type of pump is designed and manufactured in fully automatic and semi-automatic versions. Fully automatic pumps use a diaphragm vacuum pump to quickly drain and suck air and bring the liquid level to the pump, and heavy sludge materials are easily moved, but in semi-automatic pumps, due to the air extraction operation, it is done manually by the user. The types of fully automatic self-priming sludge pumps in the KSP4, KSP6, KSP8 (6 to 8 inches) models have been manufactured and reverse engineered by this company.
As mentioned, the company’s fully automatic self-priming sludge pump is reverse engineered from the English Selwood brand and is assembled as a direct coupling on the chassis and supplied with Perkins diesel engines, made in Iran (Azar Motor).
Kavash Mechanized Company is proud to sell a large number of fully automatic self-priming sludge pumps to government employers and has especially won their satisfaction, and the result has been the technical and qualitative improvement of the pumps, such as strengthening the chassis, minimizing vibrations during operations, and also the use of smart electrical panels if needed and appropriate to control diesel and pumps.
Kavash Mechanized Company is proud to sell a large number of fully automatic self-priming sludge pumps to government employers and has especially won their satisfaction, and the result has been the technical and qualitative improvement of the pumps, such as strengthening the chassis, minimizing vibrations during operations, and also the use of smart electrical panels if needed and appropriate to control diesel and pumps.

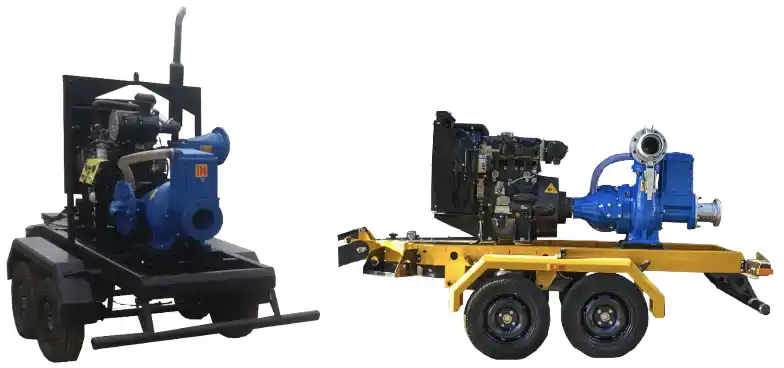

kavoshmech_Automatic self-priming sludge pump

4 inch self-priming pump 6 inch self-priming pump 8 inch self-priming pump

Previous Next

Technical specifications of the four-inch self-priming pump, model KSP4

The pump operates fully automatically.

The device has a self-priming system (SP)

Installed on a two-axle trailer, including the following:

Has a spring suspension system
Has the ability to turn (front axle rotates)

The diesel pump engine speed is 50 rpm14.

The maximum suction lift of the pump is 8.5 meters above sea level.

The maximum flow rate of the device is m3/hr 160 m.

The maximum total head of the device is 30 meters.
The suction hose is four inches in size, 6 meters long, of the PVC Heli Flex with steel Spiral type.
The thrust hoses are four inches in size, 25 meters long, of the PVC lay flat or fire fighting type.
The open-eye impeller is made of steel (SS 304) and can pass solids up to 100 mm in diameter.
90-liter diesel tank
Net weight of the pump: 265 kg and total weight of the device: 1 ton
Has a one-year warranty and 10 years of after-sales service (for all parts)
The 4-cylinder diesel engine is the brand of Motorsazan Tabriz (Perkins design) and the pump is the brand of Kavosh Mechanize Fan Avar (Sellwood design, England).
Custom Features

Using quick-connect suction and discharge hose connections
With filter strainer to prevent large solids from entering
Change the size of the diesel tank to increase continuous operation hours
Add a fuel level indicator
Install a hazard light
Install a canopy

Capacity

165 cubic meters per hour

Final head

30 meters

Solids passage

75 mm

Suction height at sea level

8.8 meters

Air transfer

24 liters per second

Power required

24 kW

Maximum pump speed

1500 rpm

Minimum pump speed

960 rpm

Number of impeller blades

Impeller diameter

215 mm

Inlet diameter

4 inches

Outlet diameter

4 inches

Technical specifications of the six-inch self-priming pump, model
KSP6

The pump operates fully automatically.

The device has a self-priming system (SP)

Installed on a two-axle trailer, including the following:

Has a spring suspension system
Has the ability to turn (front axle rotates)

The pump speed is 50 rpm14.
The maximum suction lift of the pump is 8.5 meters above sea level.
The maximum flow rate of the device is 320 m3/hr.
The maximum total head of the device is 30 meters.
The suction hose is six inches in size, 6 meters long, made of PVC Hely Flex with steel Spiral.
The thrust hoses are six inches in size, 25 meters long, made of PVC lay flat or fire-fighting type.
The open-eye impeller is made of steel (SS 304) and can pass solids up to 100 mm in diameter.
90-liter diesel tank
Net weight of the pump: 265 kg and total weight of the device: 1 ton
Has a one-year warranty and 10 years of after-sales service (for all parts)
The 4-cylinder diesel engine is the brand of Motorsazan Tabriz (Perkins design) and the pump is the brand of Kavosh Mechanize Fan Avar (Sellwood design, England).
Custom Features

Capacity

320 cubic meters per hour

Final head

30 meters

Solids passage

100 mm

Suction height at sea level

8.8 meters

Air transfer

24 liters per second

Power required

28 kW

Maximum pump speed

1500 rpm

Minimum pump speed

955 rpm

Number of impeller blades

Impeller diameter

235 mm

Inlet diameter

6 inches

Outlet diameter

6 inches

Technical specifications of the eight-inch self-priming pump, model
KSP8

The pump operates automatically.
The device has a self-priming vacuum system, ready to use by pouring water into the chamber once.
The device (pump and diesel engine) is installed on a single-axle (two wheels) or two-axle (four wheels) trailer, and the system includes the following:

Front jack with height adjustment
2 rear support jacks
Mechanical handbrake acting on the rear axle
Hazard lights and caution lights
Has a suspension system

The device works with a 6-cylinder diesel engine.
The pump motor speed is 0 rpm150.
The device is electrically started and the relevant control panel has the ability to display

Oil pressure
Operating hours
Engine speed
Start button
Stop button
Metal panel
Damper to prevent panel vibration for ease of use and increase the life of the devices inside the panel

The maximum suction lift of the pump is 6.7 meters above sea level.
The maximum flow rate of the device is 600 m3/hr.
The maximum total head of the device is 34 meters.
The suction and thrust hose connections are of the quick-connect type
. Meters are 6 PVC Hely Flex with steel Spiral Six-inch suction hose of the type
Six-inch transfer hoses of the PVC Lay Flat or fire fighting type are 25 meters.
The open-eye butterfly type is made of steel (SS 304) and is capable of passing solids up to a diameter of 76 millimeters.
It has a filter to prevent the entry of solids greater than a diameter of 76 millimeters.
The diesel tank is 90 liters and has the ability to operate for 14 hours of continuous work with an indicator of the amount of fuel inside the tank.
Net weight of the pump: 300 kg.
Total weight of the device: 1200 kg
One year warranty and 10 years of after-sales service (for all parts)
Comes with a manual for operation and maintenance of the device.
Country of manufacture: Kavuz Mechanized Technology
Country of diesel manufacturer: Motorsazan – Tabriz – Iran
Place of delivery: Manufacturer’s factory

Capacity

630 cubic meters per hour

Final head

30 meters

Solids passage

100 mm

Suction height at sea level

8.8 meters

Air transfer

24 liters per second

Power required

52 kW

Maximum pump speed

1700 rpm

Minimum pump speed

1000 rpm

Number of impeller blades

Impeller diameter

235 mm

Inlet diameter

8 inches

Outlet diameter

8 inches

Smart electrical panel

Smart electrical panels have the ability to program and give various commands, such as specifying the number of times the engine starts when starting the diesel, the start duration, as well as intelligent control of the temperature of water and diesel oil, and by automatically shutting down the engine in case of excessive temperature increase, it prevents serious damage to the diesel engine and financial losses.
This panel also has a dedicated charger to keep the diesel battery charged.
When the pump is not used for a long time and is turned off, the panel charger can be used using city electricity to prevent the battery from emptying and keep the battery charged.
The panel has an insulated enclosure and IP54 standard to prevent water from penetrating during rainfall.
This panel also has an indicator to display the input voltage to the battery for charging the battery.

Chassis

Fully automatic slurry pump chassis are single-axle and double-axle depending on the customer’s taste.
The chassis brake system can use a hand brake or just the chassis brake or both.
Also, a metal wheel is used at the front of the chassis to make the chassis easier to steer.
The chassis suspension system is a flat spring.
The chassis tank volume is usually 70 to 80 liters and can be upgraded to 200 liters.
A height adjustment bar can be installed at the front of the chassis to adjust the chassis height on uneven and sloping surfaces.
It has a rotating strap for towing the chassis by a vehicle.
